코드 그라데이션

서블릿으로 회원 관리 웹 애플리케이션 만들기 본문

Spring/MVC 1

서블릿으로 회원 관리 웹 애플리케이션 만들기

완벽한 장면 2023. 9. 22. 10:25

MemberFormServlet - 회원 등록 폼

@WebServlet(name = "memberFormServlet", urlPatterns = "/servlet/members/new-form")
public class MemberFormServlet extends HttpServlet {

  private MemberRepository memberRepository = MemberRepository.getInstance();

  @Override
  protected void service(HttpServletRequest request, HttpServletResponse response)
      throws ServletException, IOException {

    response.setContentType("text/html");
    response.setCharacterEncoding("utf-8");

    PrintWriter w = response.getWriter();
    w.write("<!DOCTYPE html>\n" +
        "<html>\n" +
        "<head>\n" +
        "    <meta charset=\"UTF-8\">\n" +
        "    <title>Title</title>\n" +
        "</head>\n" +
        "<body>\n" +
        "<form action=\"/servlet/members/save\" method=\"post\">\n" +
        "    username: <input type=\"text\" name=\"username\" />\n" +
        "    age:      <input type=\"text\" name=\"age\" />\n" +
        "    <button type=\"submit\">전송</button>\n" +
        "</form>\n" +
        "</body>\n" +
        "</html>\n");
  }
}



그 전에 갑자기 혼동되는 개념 짚고 넘어가기

@WebServlet 어노테이션

  • @WebServlet 어노테이션은 이 클래스가 서블릿임을 나타낸다.
  • 이 클래스는 웹 어플리케이션의 서블릿으로 동작하며,
  •  name 속성으로 서블릿의 이름을 설정하고
  •  urlPatterns 속성으로 이 서블릿이 처리할 URL 패턴을 설정.

실행 흐름

MemberFormServlet은 웹 어플리케이션에서 /servlet/members/new-form URL에 대한 요청을 처리하며,

해당 URL로 접속하면 회원 등록을 위한 입력 폼이 나타난다.

사용자가 정보를 입력하면 이 정보는 /servlet/members/save URL로 전송된다.

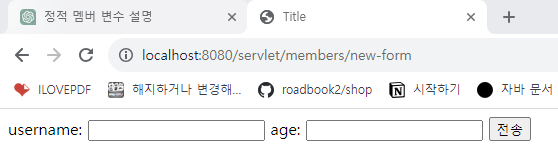

화면

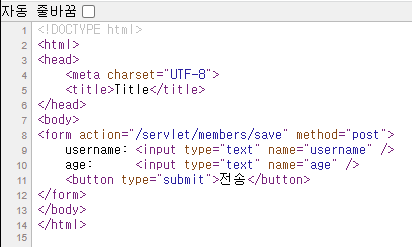

페이지 소스 보기 하면

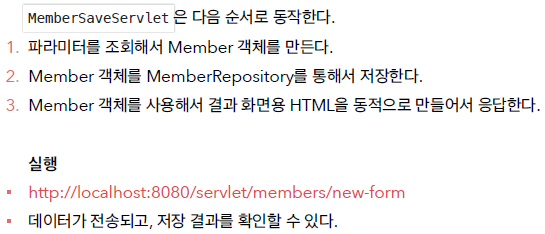

MemberSaveServlet - 회원 저장

@WebServlet(name = "memberSaveServlet", urlPatterns = "/servlet/members/save")
public class MemberSaveServlet extends HttpServlet {

    private MemberRepository memberRepository = MemberRepository.getInstance();

    @Override
    protected void service(HttpServletRequest request, HttpServletResponse response)
        throws ServletException, IOException {

        System.out.println("MemberSaveServlet.service");

        // 폼에서 입력되어 온 것을 파라미터로 꺼낸다.
        String username = request.getParameter("username");
        int age = Integer.parseInt(request.getParameter("age"));

        // 저장시킴
        Member member = new Member(username, age);
        memberRepository.save(member);

        // 저장 잘 되었는지 응답을 HTML로 내리기
        response.setContentType("text/html");
        response.setCharacterEncoding("utf-8");
        PrintWriter w = response.getWriter();
        w.write("<html>\n" +
                "<head>\n" +
                "    <meta charset=\"UTF-8\">\n" +
                "</head>\n" +
                "<body>\n" +
                "성공\n" +
                "<ul>\n" +
                "    <li>id="+member.getId()+"</li>\n" +
                "    <li>username="+member.getUsername()+"</li>\n" +
                "    <li>age="+member.getAge()+"</li>\n" +
                "</ul>\n" +
                "<a href=\"/index.html\">메인</a>\n" +
                "</body>\n" +
                "</html>");
    }
}

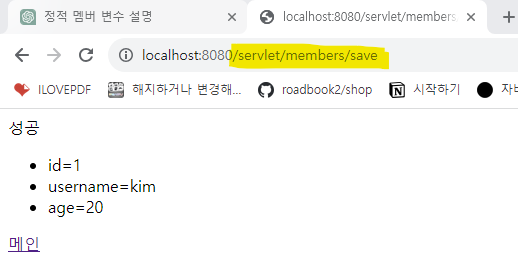

실행 화면



저장 페이지로 이동하고, 결과 잘 나옴.

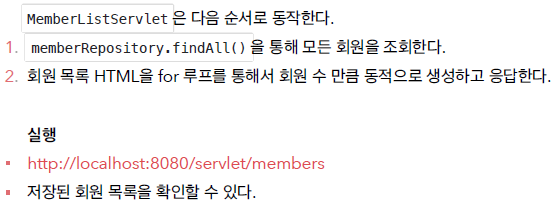

MemberListServlet - 회원 목록

@WebServlet(name = "memberListServlet", urlPatterns = "/servlet/members")
public class MemberListServlet extends HttpServlet {

    private MemberRepository memberRepository = MemberRepository.getInstance();

    @Override
    protected void service(HttpServletRequest request, HttpServletResponse response)
    	throws ServletException, IOException {

        List<Member> members = memberRepository.findAll();

        response.setContentType("text/html");
        response.setCharacterEncoding("utf-8");

        // 동적으로 만들기
        PrintWriter w = response.getWriter();
        w.write("<html>");
        w.write("<head>");
        w.write("    <meta charset=\"UTF-8\">");
        w.write("    <title>Title</title>");
        w.write("</head>");
        w.write("<body>");
        w.write("<a href=\"/index.html\">메인</a>");
        w.write("<table>");
        w.write("    <thead>");
        w.write("    <th>id</th>");
        w.write("    <th>username</th>");
        w.write("    <th>age</th>");
        w.write("    </thead>");
        w.write("    <tbody>");

        for (Member member : members) {
            w.write("    <tr>");
            w.write("        <td>"+member.getId()+"</td>");
            w.write("        <td>"+member.getUsername()+"</td>");
            w.write("        <td>"+member.getAge()+"</td>");
            w.write("    </tr>");
        }

        w.write("    </tbody>");
        w.write("</table>");
        w.write("</body>");
        w.write("</html>");
    }
}

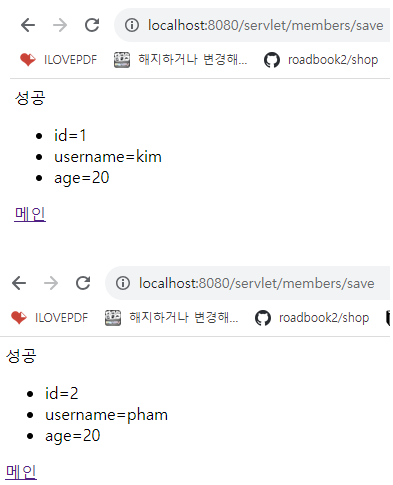

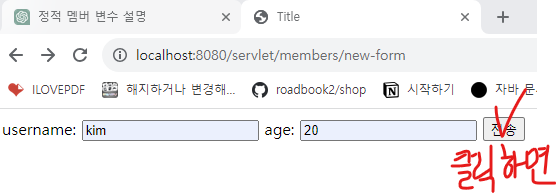

실행해서 new-form에 값 입력하고

2개를 저장한 다음



목록 url을 입력해서 확인해보면

2개 값이 잘 들어가 있음을 볼 수 있음.

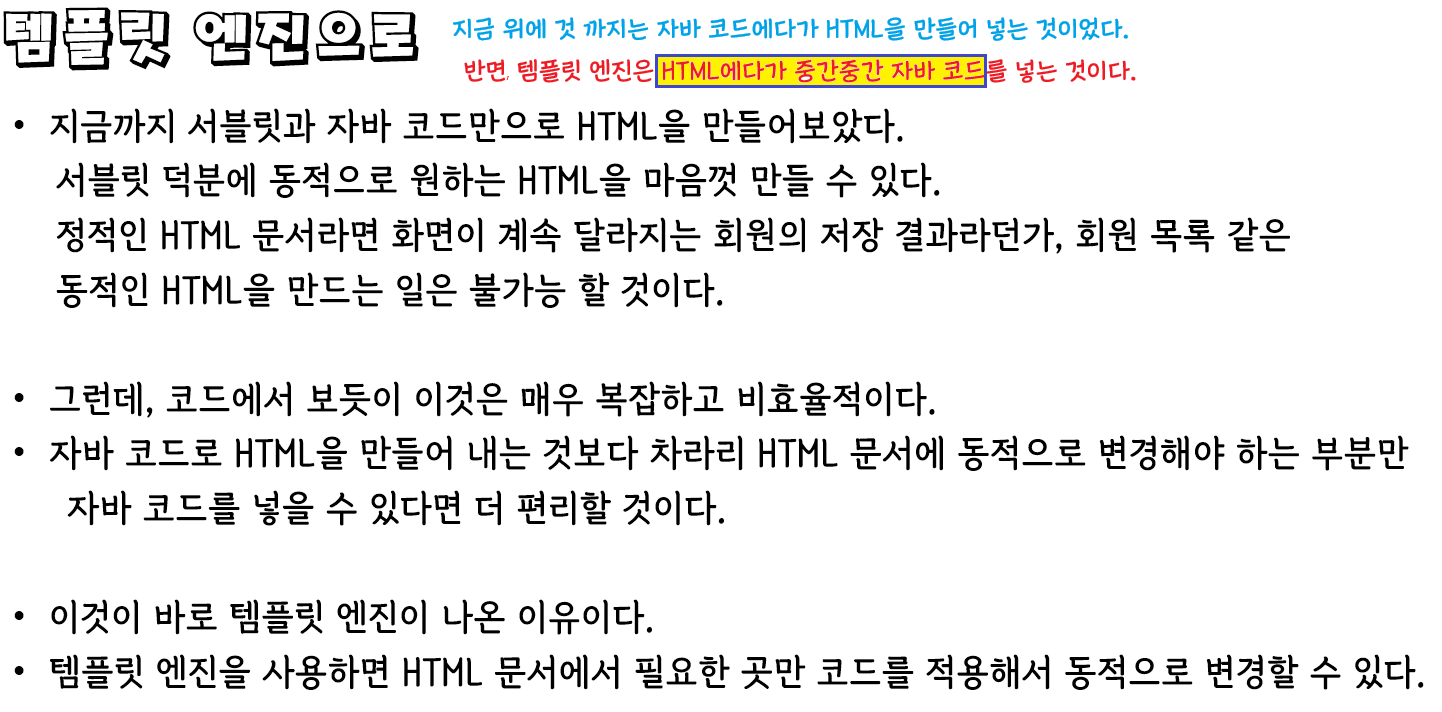

정리







[참고] Welcome  페이지 변경

<!DOCTYPE html>
<html>
<head>
    <meta charset="UTF-8">
    <title>Title</title>
</head>
<body>
<ul>
    <li><a href="basic.html">서블릿 basic</a></li>
    <li>서블릿
        <ul>
            <li><a href="/servlet/members/new-form">회원가입</a></li>
            <li><a href="/servlet/members">회원목록</a></li>
        </ul>
    </li>
    <li>JSP
        <ul>
            <li><a href="/jsp/members/new-form.jsp">회원가입</a></li>
            <li><a href="/jsp/members.jsp">회원목록</a></li>
        </ul>
    </li>
    <li>서블릿 MVC
        <ul>
            <li><a href="/servlet-mvc/members/new-form">회원가입</a></li>
            <li><a href="/servlet-mvc/members">회원목록</a></li>
        </ul>
    </li>
    <li>FrontController - v1
        <ul>
            <li><a href="/front-controller/v1/members/new-form">회원가입</a></li>
            <li><a href="/front-controller/v1/members">회원목록</a></li>
        </ul>
    </li>
    <li>FrontController - v2
        <ul>
            <li><a href="/front-controller/v2/members/new-form">회원가입</a></li>
            <li><a href="/front-controller/v2/members">회원목록</a></li>
        </ul>
    </li>
    <li>FrontController - v3
        <ul>
            <li><a href="/front-controller/v3/members/new-form">회원가입</a></li>
            <li><a href="/front-controller/v3/members">회원목록</a></li>
        </ul>
    </li>
    <li>FrontController - v4
        <ul>
            <li><a href="/front-controller/v4/members/new-form">회원가입</a></li>
            <li><a href="/front-controller/v4/members">회원목록</a></li>
        </ul>
    </li>
    <li>FrontController - v5 - v3
        <ul>
            <li><a href="/front-controller/v5/v3/members/new-form">회원가입</a></li>
            <li><a href="/front-controller/v5/v3/members">회원목록</a></li>
        </ul>
    </li>
    <li>FrontController - v5 - v4
        <ul>
            <li><a href="/front-controller/v5/v4/members/new-form">회원가입</a></li>
            <li><a href="/front-controller/v5/v4/members">회원목록</a></li>
        </ul>
    </li>
    <li>SpringMVC - v1
        <ul>
            <li><a href="/springmvc/v1/members/new-form">회원가입</a></li>
            <li><a href="/springmvc/v1/members">회원목록</a></li>
        </ul>
    </li>
    <li>SpringMVC - v2
        <ul>
            <li><a href="/springmvc/v2/members/new-form">회원가입</a></li>
            <li><a href="/springmvc/v2/members">회원목록</a></li>
        </ul>
    </li>
    <li>SpringMVC - v3
        <ul>
            <li><a href="/springmvc/v3/members/new-form">회원가입</a></li>
            <li><a href="/springmvc/v3/members">회원목록</a></li>
        </ul>
    </li>
</ul>
</body>
</html>
